import random
import numpy as np
import matplotlib.pyplot as plt
import copy

# --- 配置参数 ---
N_QUEENS = 8          # 8皇后
POP_SIZE = 100        # 种群大小
MAX_GEN = 200         # 最大迭代次数
MUTATION_RATE = 0.05  # 变异率
CROSSOVER_RATE = 0.8  # 交叉率

class GeneticNQueens:
    def __init__(self, crossover_type='single'):
        self.crossover_type = crossover_type
        # 初始化种群：每个个体是一个长度为8的数组，值域0-7
        self.population = [np.random.randint(0, N_QUEENS, N_QUEENS) for _ in range(POP_SIZE)]
        self.history = [] # 记录每代的最佳适应度

    def get_fitness(self, individual):
        """
        计算适应度（冲突数）。越低越好，0表示无冲突。
        """
        conflicts = 0
        n = len(individual)
        # 检查列冲突和对角线冲突
        # 注意：行冲突由编码方式避免了（索引即行号）
        for i in range(n):
            for j in range(i + 1, n):
                # 列冲突
                if individual[i] == individual[j]:
                    conflicts += 1
                # 对角线冲突 (行差 == 列差)
                elif abs(i - j) == abs(individual[i] - individual[j]):
                    conflicts += 1
        return conflicts

    def selection(self):
        """锦标赛选择"""
        tournament_size = 5
        candidates = random.sample(self.population, tournament_size)
        candidates.sort(key=lambda x: self.get_fitness(x))
        return copy.deepcopy(candidates[0])

    def crossover(self, p1, p2):
        """
        根据指定的类型执行交叉
        """
        if random.random() > CROSSOVER_RATE:
            return p1, p2

        c1, c2 = copy.deepcopy(p1), copy.deepcopy(p2)
        size = len(p1)

        if self.crossover_type == 'single':
            # 单点交叉
            point = random.randint(1, size - 1)
            c1 = np.concatenate((p1[:point], p2[point:]))
            c2 = np.concatenate((p2[:point], p1[point:]))

        elif self.crossover_type == 'two':
            # 双点交叉
            point1 = random.randint(1, size - 2)
            point2 = random.randint(point1 + 1, size - 1)
            c1 = np.concatenate((p1[:point1], p2[point1:point2], p1[point2:]))
            c2 = np.concatenate((p2[:point1], p1[point1:point2], p2[point2:]))

        elif self.crossover_type == 'uniform':
            # 均匀交叉
            for i in range(size):
                if random.random() > 0.5:
                    c1[i], c2[i] = p2[i], p1[i]

        return c1, c2

    def mutate(self, individual):
        """单点变异：随机改变某一行的皇后位置"""
        if random.random() < MUTATION_RATE:
            idx = random.randint(0, N_QUEENS - 1)
            individual[idx] = random.randint(0, N_QUEENS - 1)
        return individual

    def run(self):
        best_solution = None
        min_conflicts = float('inf')

        for gen in range(MAX_GEN):
            # 1. 计算种群所有个体的适应度
            scores = [self.get_fitness(ind) for ind in self.population]

            # 记录当前最佳
            current_best_score = min(scores)
            self.history.append(current_best_score)

            if current_best_score < min_conflicts:
                min_conflicts = current_best_score
                best_solution = self.population[scores.index(current_best_score)]

            # 如果找到解（冲突为0），可以提前停止，但在对比实验中通常跑满代数
            if min_conflicts == 0:
                # 为了曲线长度一致，填充剩余代数
                self.history.extend([0] * (MAX_GEN - gen - 1))
                break

            # 2. 生成新一代
            new_population = []
            while len(new_population) < POP_SIZE:
                p1 = self.selection()
                p2 = self.selection()

                c1, c2 = self.crossover(p1, p2)

                c1 = self.mutate(c1)
                c2 = self.mutate(c2)

                new_population.append(c1)
                new_population.append(c2)

            self.population = new_population[:POP_SIZE]

        return best_solution, min_conflicts, self.history

# --- 主程序：运行并对比三种算子 ---

operators = ['single', 'two', 'uniform']
results = {}

print(f"{'算子类型':<10} | {'最终冲突数':<10} | {'最优解 (行0-7的列号)'}")
print("-" * 50)

for op in operators:
    ga = GeneticNQueens(crossover_type=op)
    best_sol, score, history = ga.run()
    results[op] = {'history': history, 'solution': best_sol, 'score': score}
    print(f"{op:<10} | {score:<10} | {best_sol}")

# --- 绘图 ---

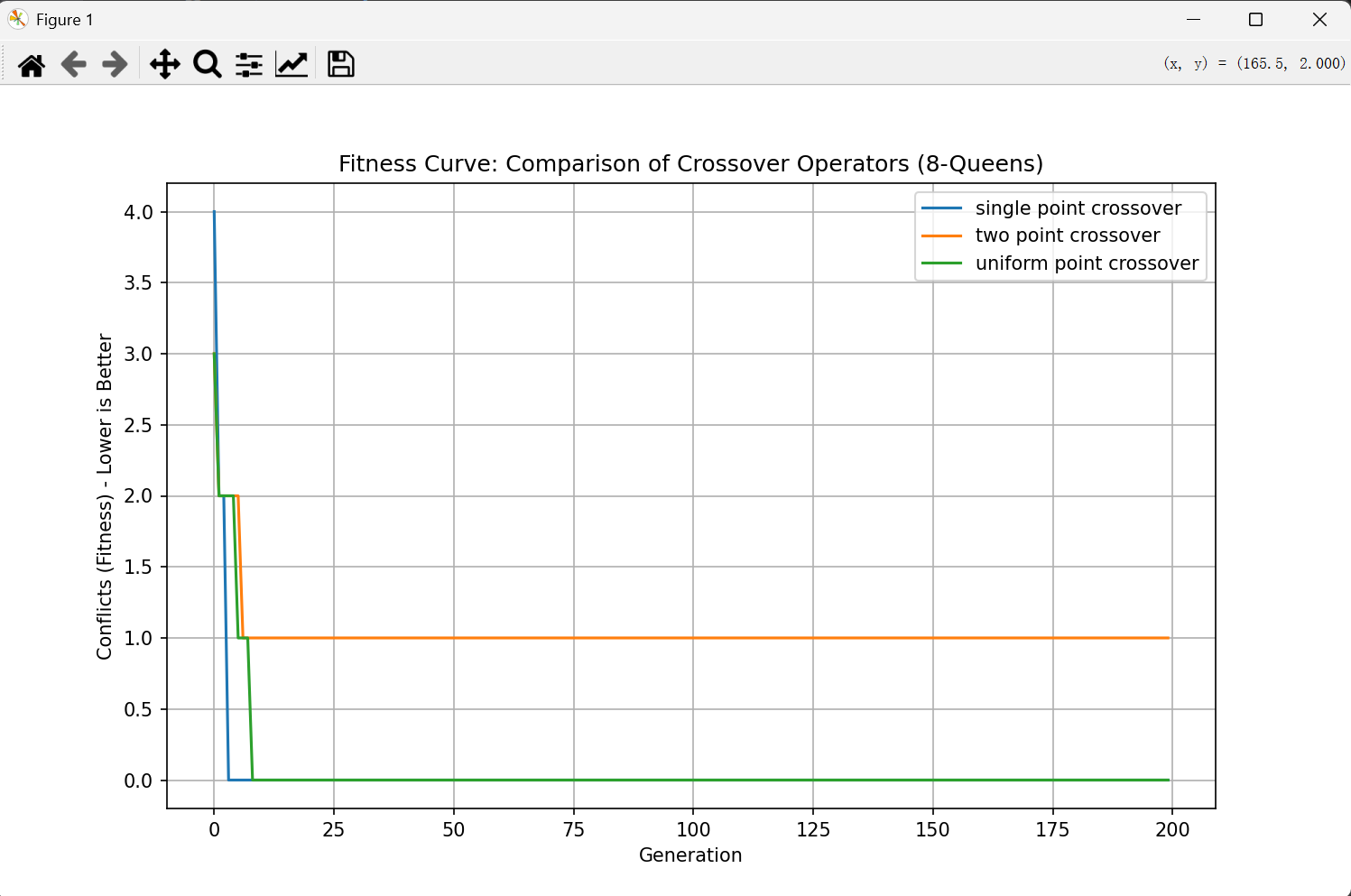

plt.figure(figsize=(10, 6))
for op in operators:
    plt.plot(results[op]['history'], label=f'{op} point crossover')

plt.title('Fitness Curve: Comparison of Crossover Operators (8-Queens)')
plt.xlabel('Generation')
plt.ylabel('Conflicts (Fitness) - Lower is Better')
plt.legend()
plt.grid(True)
plt.show()

# --- 打印最优棋盘 (以单点交叉的结果为例) ---
def print_board(solution):
    print("\n=== 最优棋盘可视化 (示例) ===")
    n = len(solution)
    for row in range(n):
        line = ""
        for col in range(n):
            if solution[row] == col:
                line += " Q "
            else:
                line += " . "
        print(line)
    print("Coordinates:", list(enumerate(solution)))

# 如果找到了完美解，打印它
if results['uniform']['score'] == 0:
    print_board(results['uniform']['solution'])
elif results['two']['score'] == 0:
    print_board(results['two']['solution'])
else:
    print_board(results['single']['solution'])

算子类型       | 最终冲突数      | 最优解 (行0-7的列号)
--------------------------------------------------
single     | 0          | [3 5 7 2 0 6 4 1]
two        | 1          | [4 7 0 3 5 2 1 6]
uniform    | 0          | [4 1 7 0 3 6 2 5]
